C&C 30 mk II

LOA: 30'          LWL: 25' 9"

Yacht Name

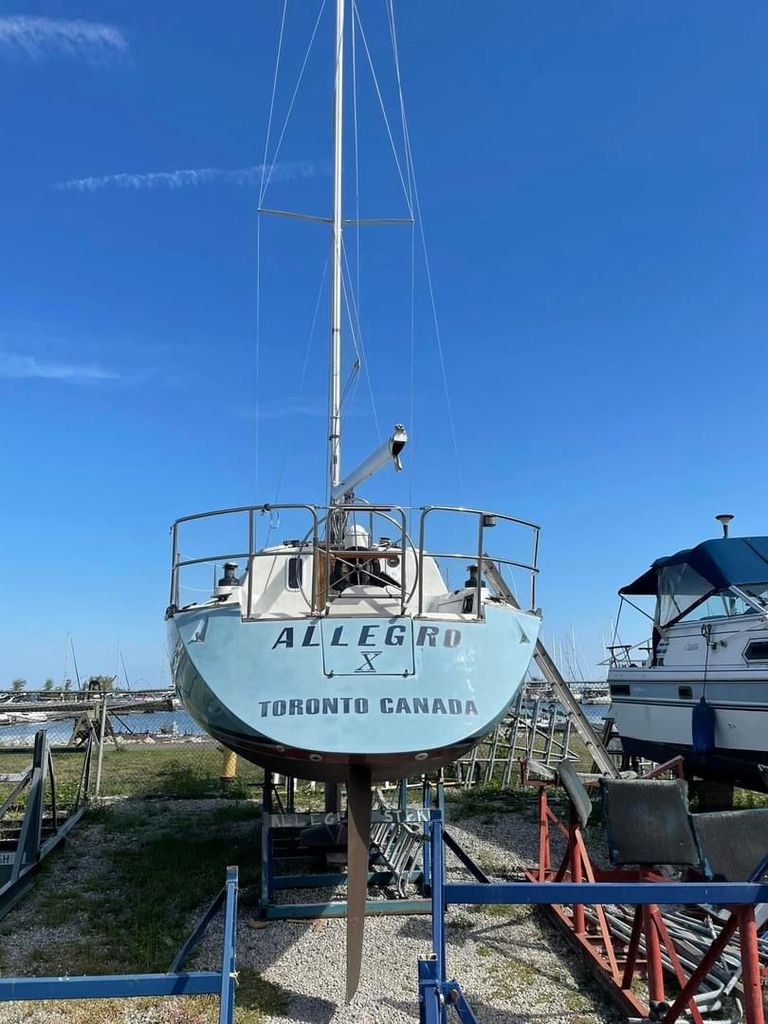

Allegro X,




Designer / Draughtsman

C&C Design Group,

Ball, Robert Wilson

Year of Design



C&C Yachts Limited



This later model was designed by Robert W. Ball and introduced in 1988.

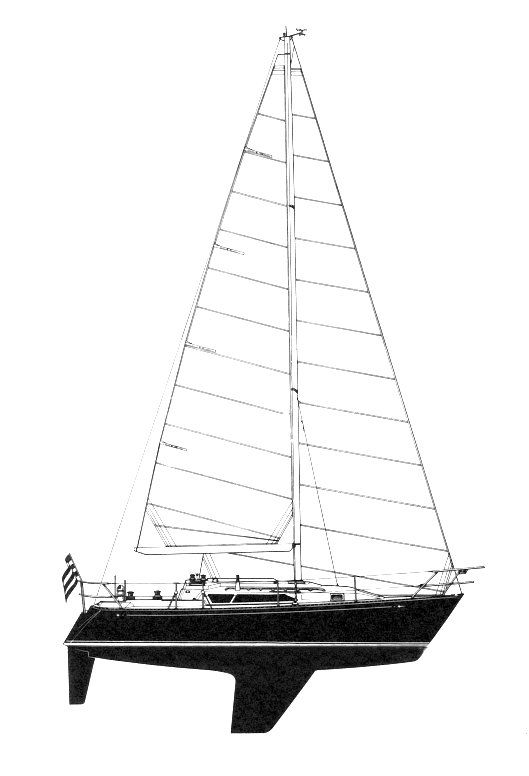

It has a length overall of 29.92 ft (9.1 m), a waterline length of 25.75 ft (7.8 m), displaces 8,275 lb (3,753 kg) (8,500 lb (3,856 kg) with the winged keel), carries 3,100 lb (1,406 kg) of lead ballast and has a masthead sloop rig. The boat has a draft of 5.83 ft (1.78 m) with the standard keel and 4.50 ft (1.37 m) with the optional wing keel.

The boat is fitted with a Japanese Yanmar 2GM diesel engine. The fuel tank holds 33 U.S. gallons (120 L; 27 imp gal) and the fresh water tank has a capacity of 53 U.S. gallons (200 L; 44 imp gal). The boat has a PHRF racing average handicap of 144 with a high of 144 and low of 147. It has a hull speed of 6.8 kn (12.59 km/h)


 Number Built


Web Link


For more information and images, view in Airtable
